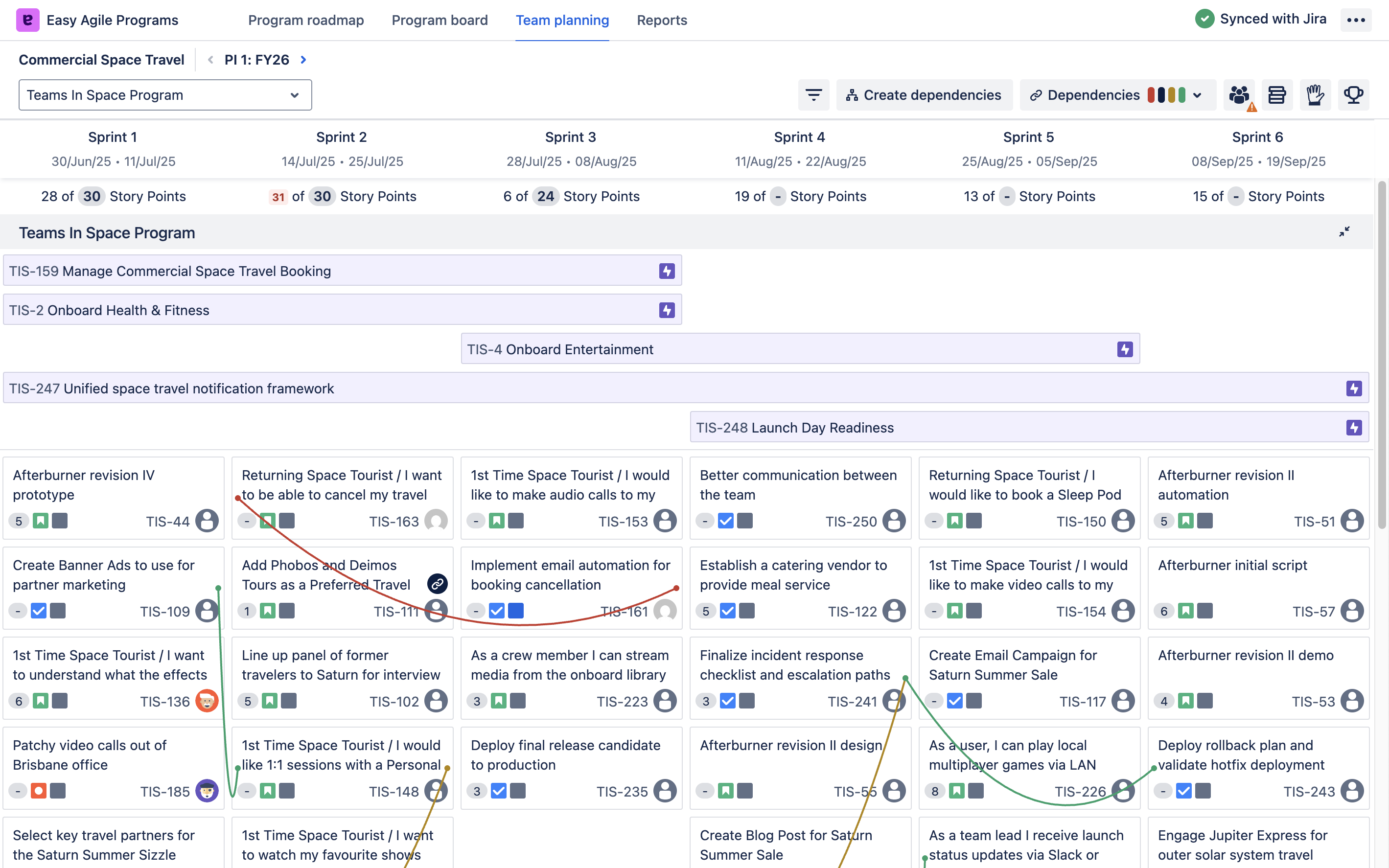

Team Planning Board

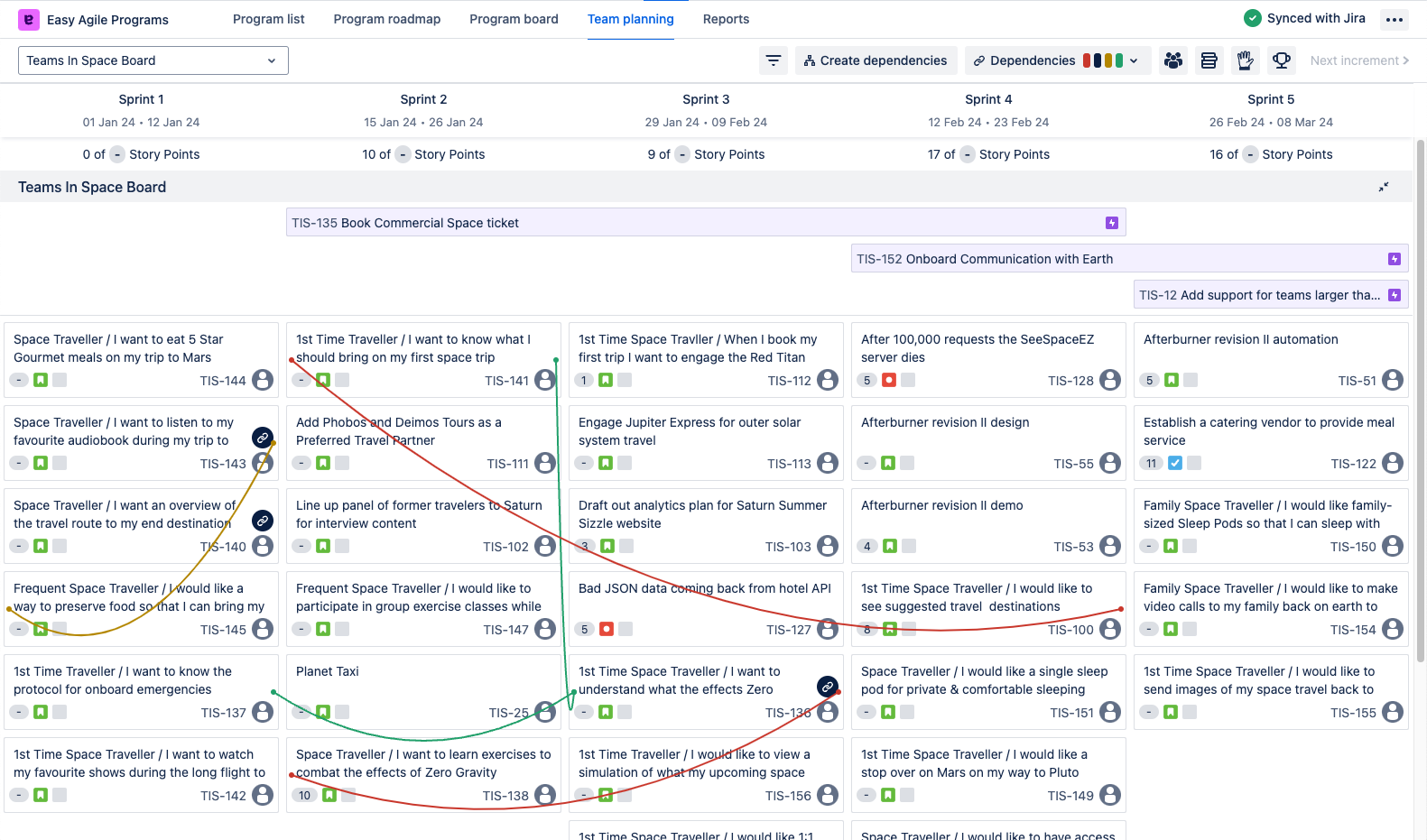

The Team Planning Board represents a Scrum or Kanban board which is included in the Program. This is where the team will plan their work during the team breakouts sessions during PI Planning.
From this screen you can:
See the features scheduled into the team’s swimlane as well as any features in the Shared Team Swimlane

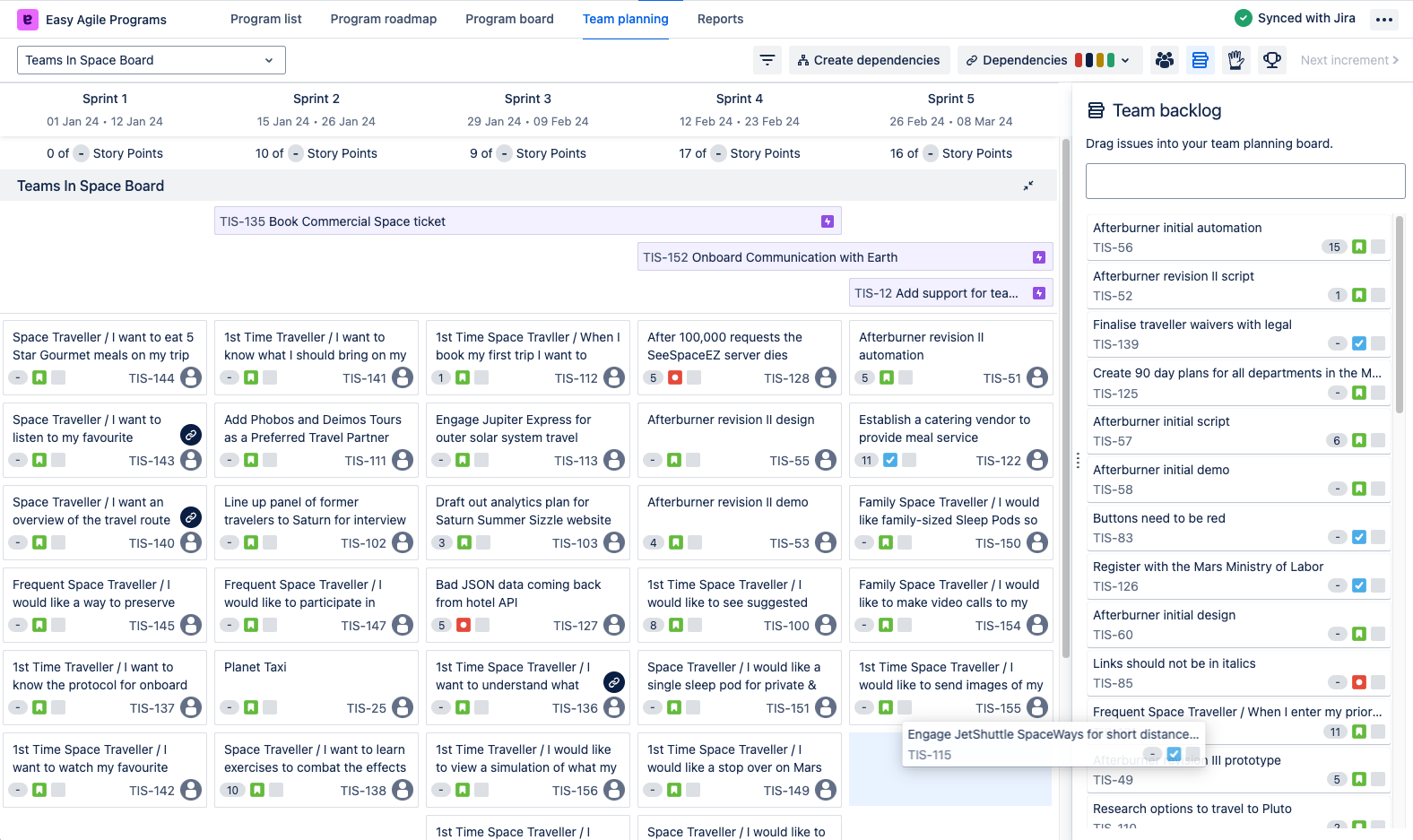

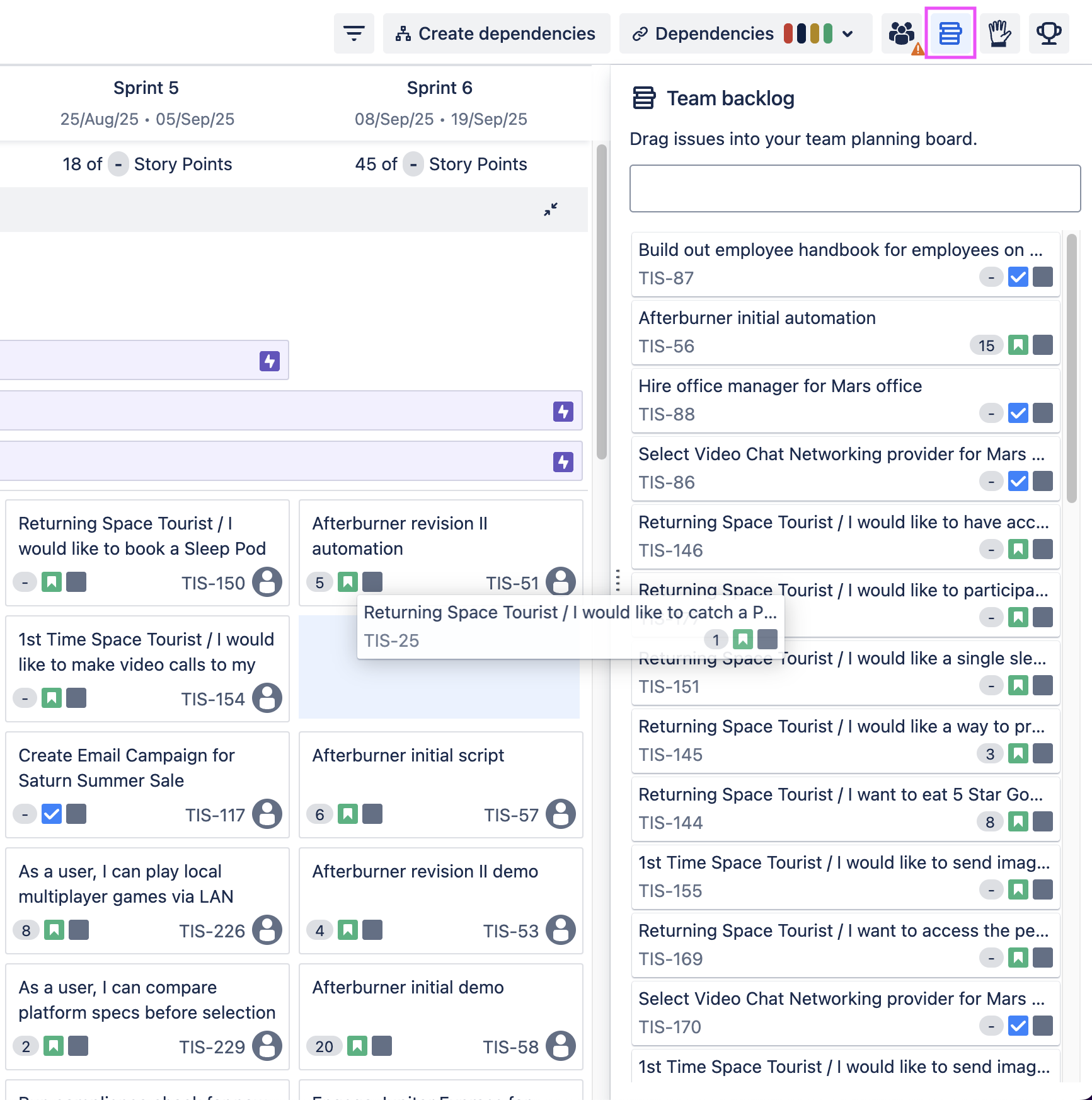

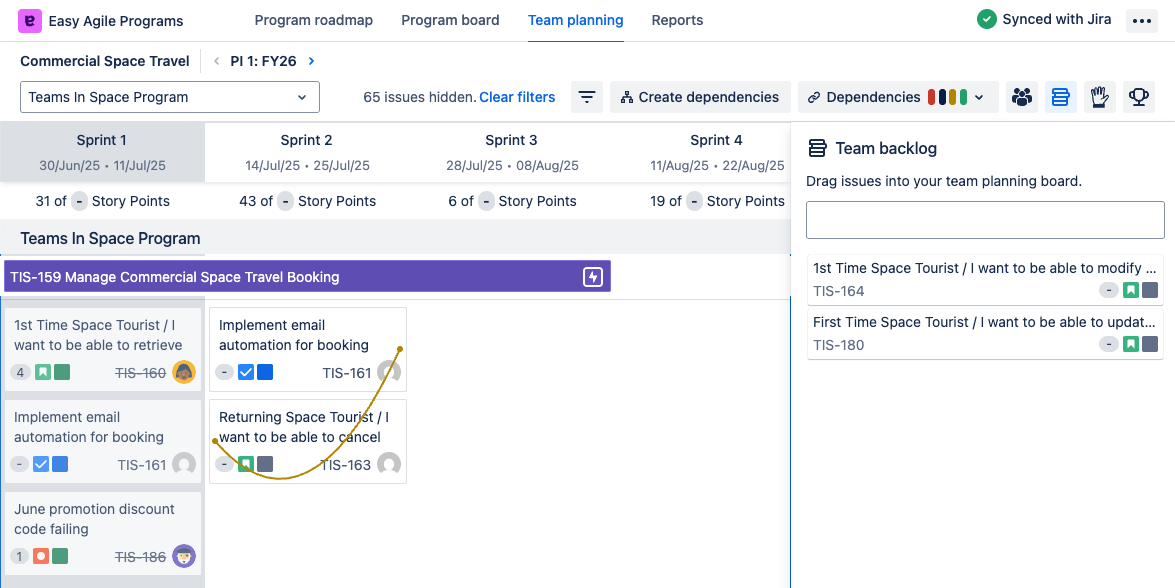

Schedule issues from your Jira backlog using drag & drop

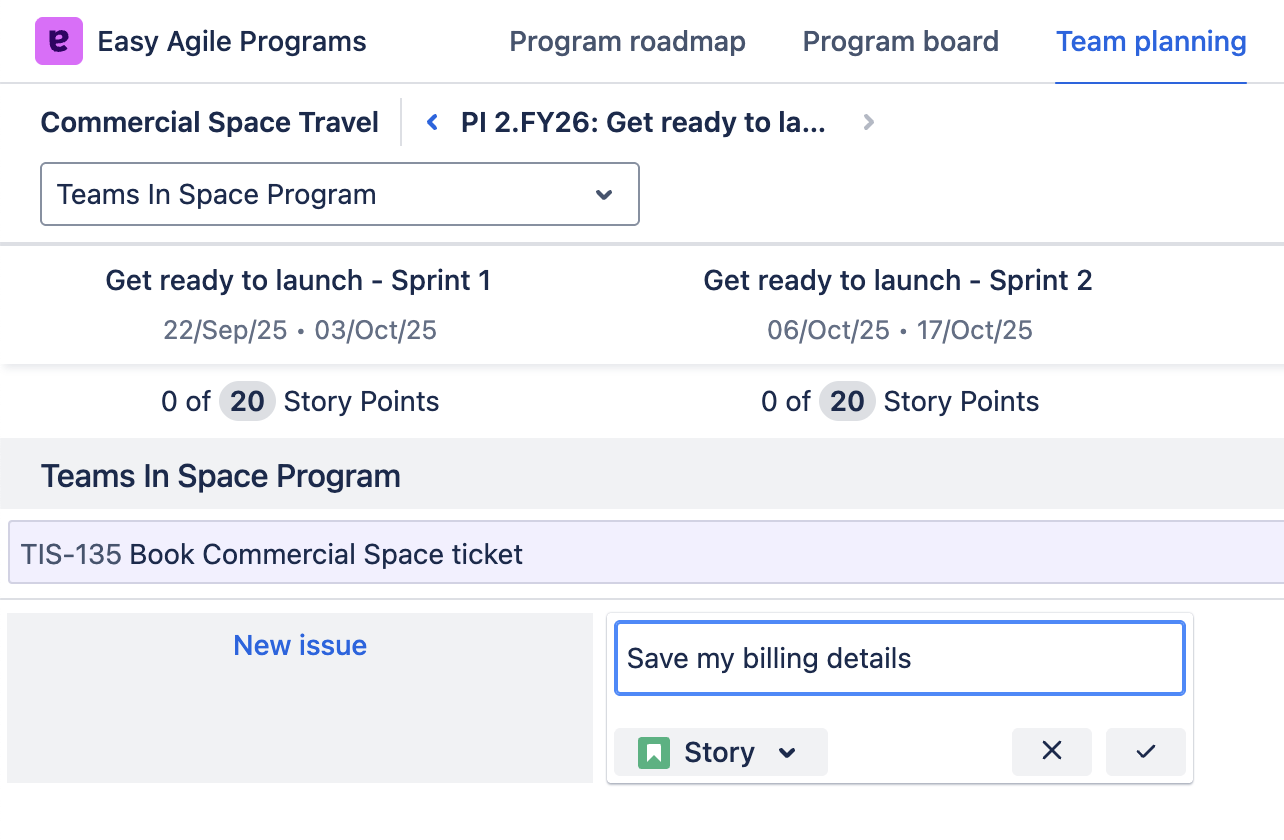

Create new issues
Click on the relevant feature first so that the new issue is linked automatically to that feature
For multi-project boards, you'll be able to set the project when creating an issue
If you have any required fields, then the issue dialog modal will appear so they can be filled in

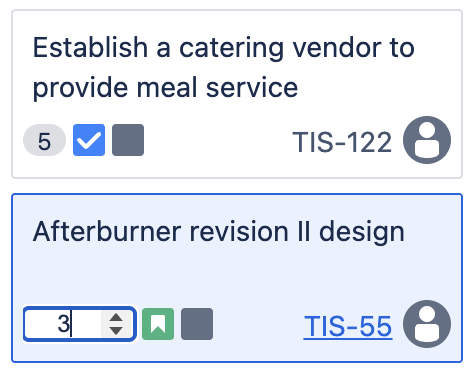

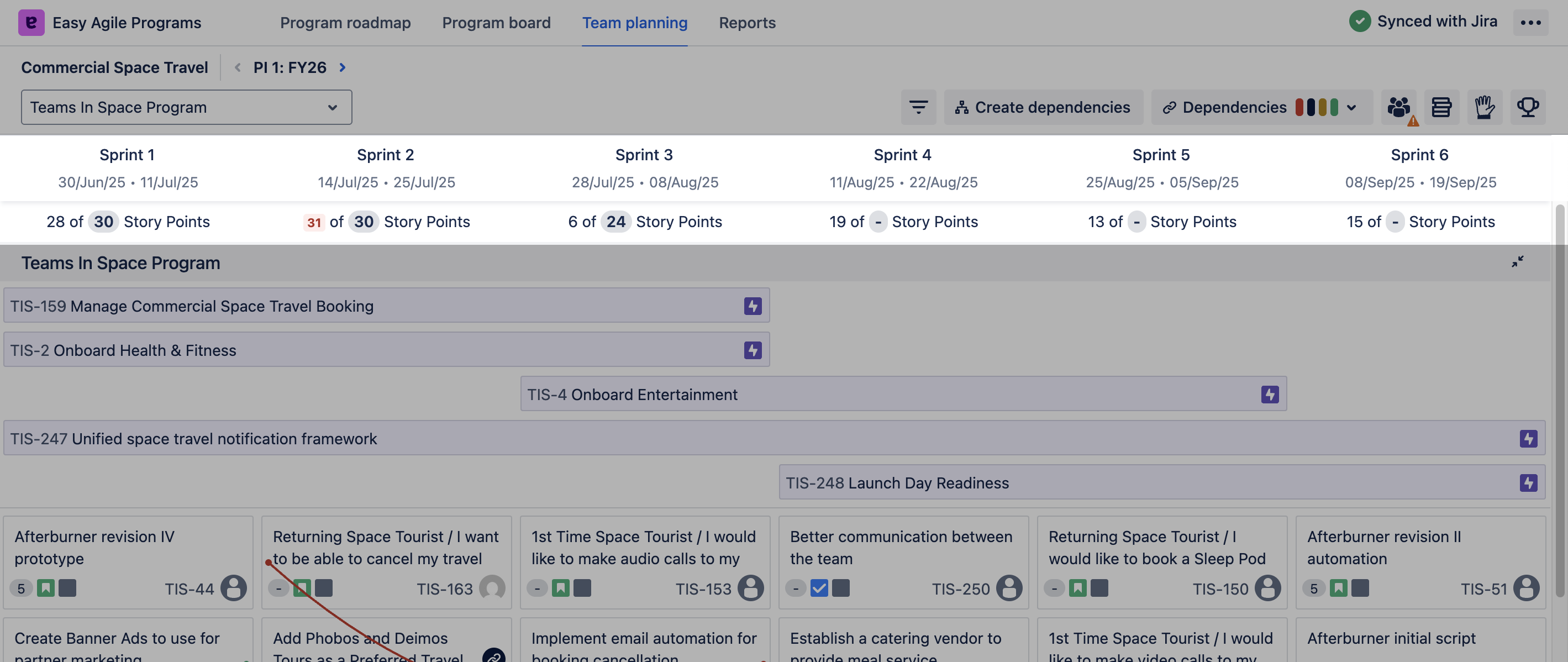

Add the sprint capacity and estimate tasks directly on the issue cards (note: estimations aren’t available for Kanban boards)

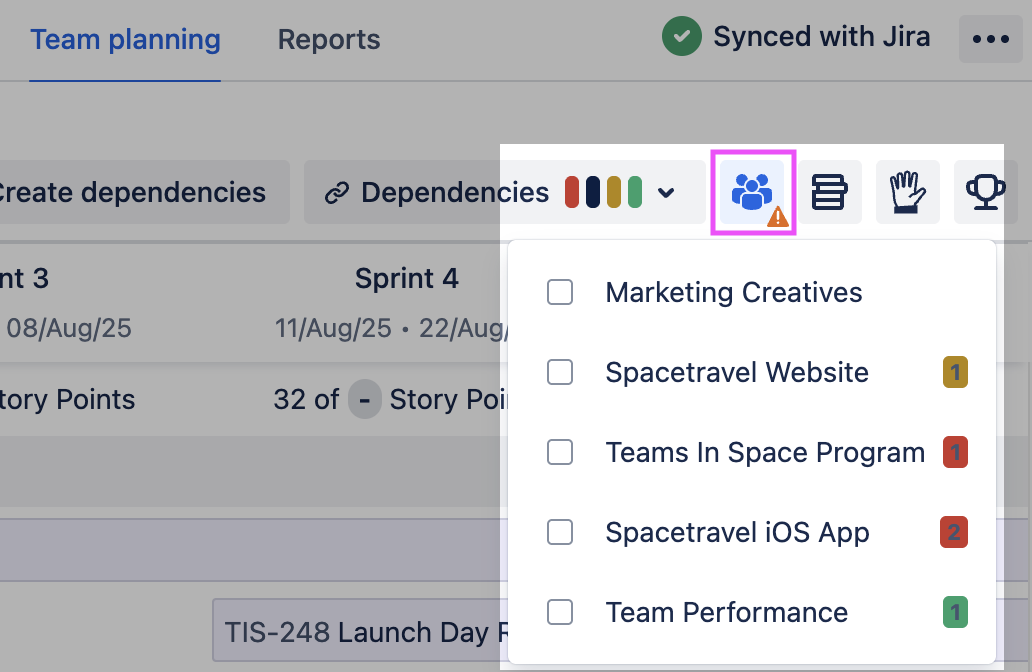

Add another team to your board to understand what they have scheduled and create any dependencies

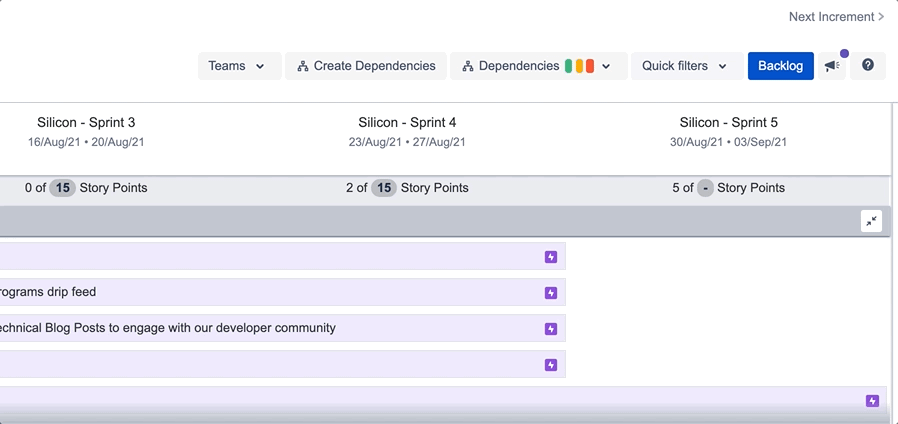

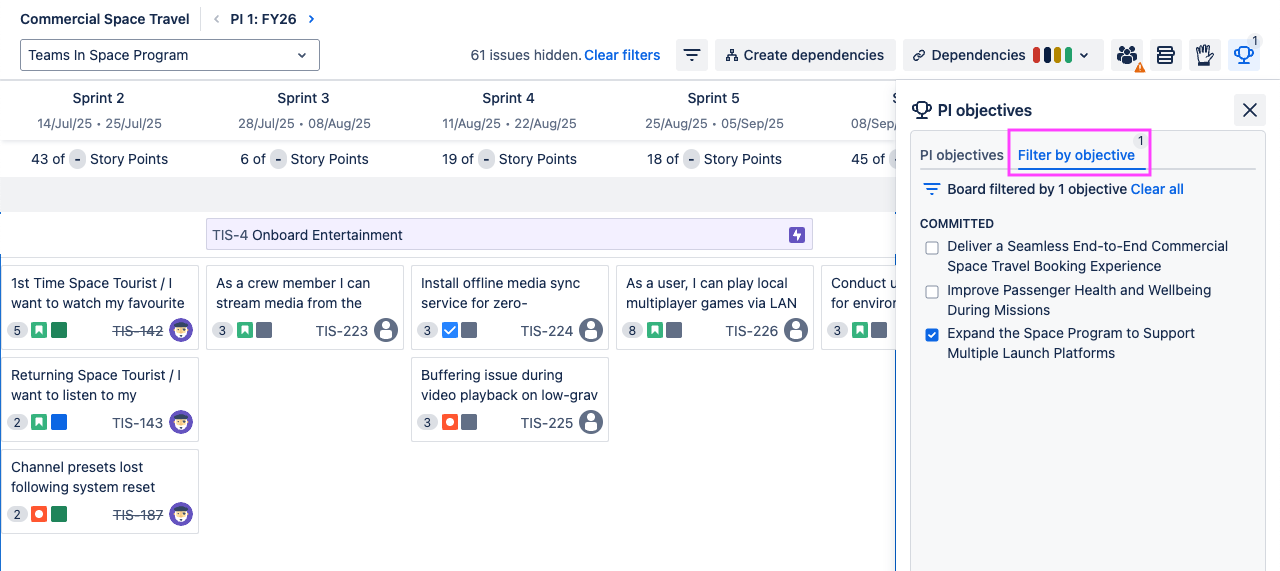

Filter the board and backlog using Quick Filters
Select or edit your sprints if using ‘Team Managed Sprints’ as your sprint source. Click here for more information on Sprint Source.
Add up to 3 additional fields to the cards. Refer to the FAQs below for more information.
Easy Agile Programs Custom Fields - From version 2.1.0 for Scrum Boards and version 3.4.0 for Kanban boards, the ‘Program’ and ‘Program Increment’ custom fields will be added to any issue that is scheduled on the Team Planning Board. Click here to learn more about custom fields.
FAQs

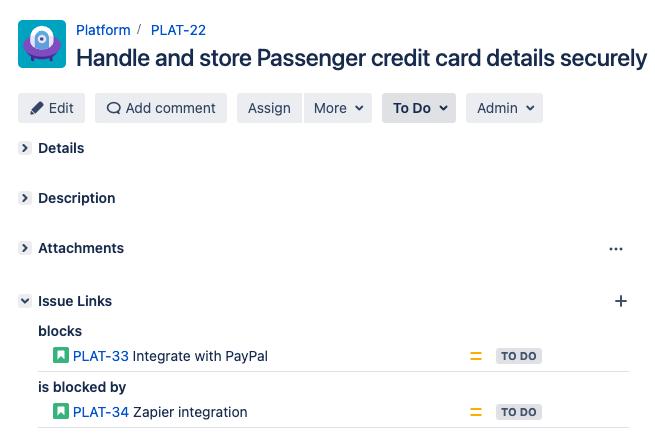

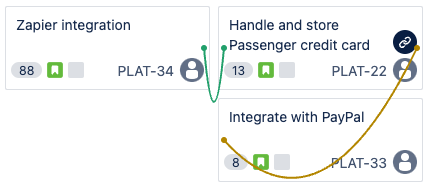

How do I create dependencies?
To learn more about how to create dependencies visit the ‘Dependencies’ page.
How are Kanban boards shown on the Team Planning Board given we don’t work in sprints?
When viewing the Team Planning Board for a Kanban team, you will see sprint columns just like Scrum boards. These “sprints” are for visualisation purposes only and do not represent real sprints on your Jira board.
We recommend planning Kanban team’s work into these columns if you have dependencies with other teams so that estimated timeframes can be visualised and potential risks can be discussed.
Estimations and capacity management is not available for Kanban boards.
Currently, Kanban team-managed boards are not compatible with Easy Agile Programs if you’re using shared/global sprints.
Are changes made on this screen reflected in Jira?
Yes, any changes made on this screen will be automatically reflected on your Jira backlog. This includes the creation of new issues, the sprint an issue in scheduled in, estimations and issue ranking.
How do I change the sprints linked to this Increment?
Click here to understand how to edit the sprints linked to your Increment.
Is it possible to add fields when creating a new issue in the Team Planning view?
If you have a very simple filter with a component or a label such as Project=EAP and Component=WEB we will automatically add the field to created tickets. This only works for simple filters and only for components and labels at this stage.
Separately, if you have a required field we pop the create issue dialog unless that field is component or label and we can pre-populated it as per the above.

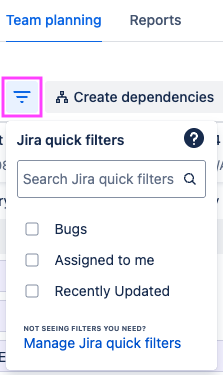

How do I create new Quick Filters?

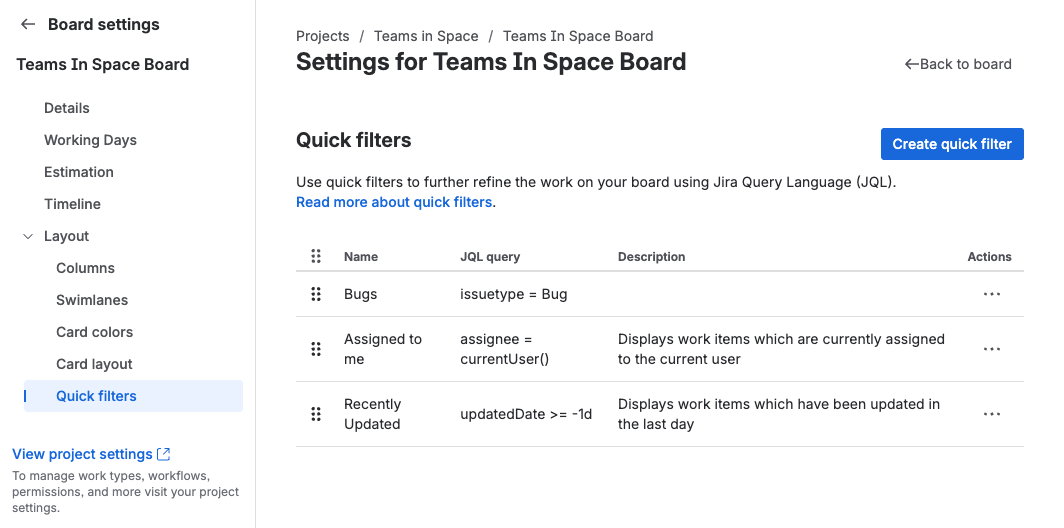

The Quick Filters are pulled from your team board. You’ll also see Quick Filters from the dedicated roadmap board for Programs configured in this way. Quick Filters need to be created and edited on your Jira Board. For more information on Quick Filters, click here for Server/Data Center and here for Cloud.
How can I hide shared team features that don’t apply to my team?
If your features live on a dedicated board, you can use Quick Filters from this board to filter out issues that don’t apply to your team.

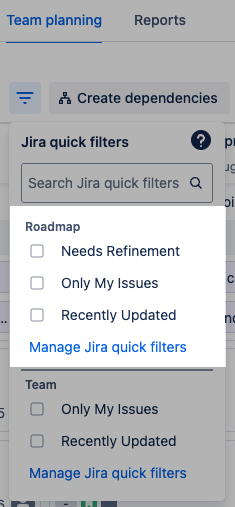

Simply create a suitable Quick Filter in Board Settings and it will be available under ‘Roadmap’ within the Quick Filters drop down in the Team Planning Board navigation.
If teams manage their own feature backlog then you won’t be able to filter out features from the Shared Team swimlane at this stage.
Can configure the card layout to reflect what I have in my Jira backlog?

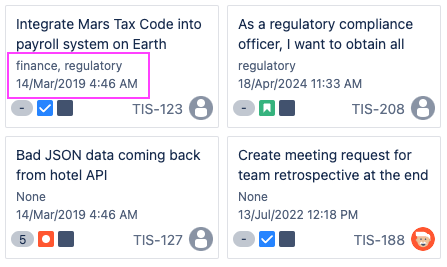

Yes, you can add up to 3 additional fields to the issue cards. See Adding additional fields to issue cards to learn how.
When creating a new issue on the Team Planning Board, why did it fail to link to the selected roadmap item?
This problem can occur when:
The Program Roadmap is configured to use “other issue types from a dedicated agile board” (more details on configuration options here); AND
The Team to Roadmap Link Type configured for the Program is “Parent”.
The issue will be created, but it can only be linked to its parent if the “Parent” field is available to edit in Jira.

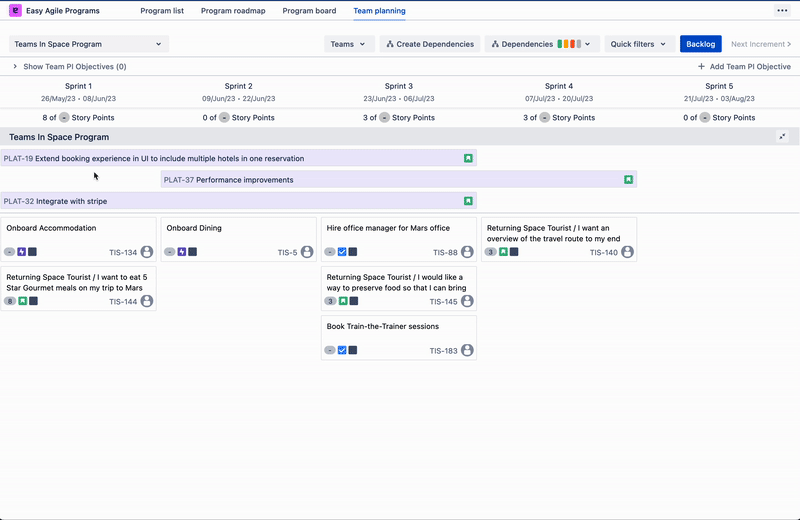

When an issue fails to link with a parent, we show a message with a link to clear all filters so that you can easily see the newly created issue (pictured below).
Cloud
Linking an issue to a roadmap item will fail if the parent-child relationship doesn’t match your configured hierarchy levels.
For example: by default, an Epic can be “parent of” a story, but not the other way around.
Please see Atlassian’s support documentation for more information.
Data Center/Server
Using “Parent Link” for the Team to Roadmap Link Type is only available in Easy Agile Programs version 5.3.0 and later.
Linking an issue to a roadmap item will fail if:
The “Parent” field is not present on the issue’s edit screen. To rectify this problem, a Jira Administrator will need to add the Parent field to the Issue Screen in Jira; OR
[Jira Server only] The Advanced Roadmaps app on Jira Server does not have an active license (Advanced Roadmaps is included in current versions of Jira Data Center.)
